DRSSTC Tesla Coil Drive Board, Tesla Coil Artificial Lightning Accessories, New UD2.9 DRSSTC Drive Tool Part, PDM and OCD Dual Mode Dual Totem Driver Board, for Tesla Coil Accessories

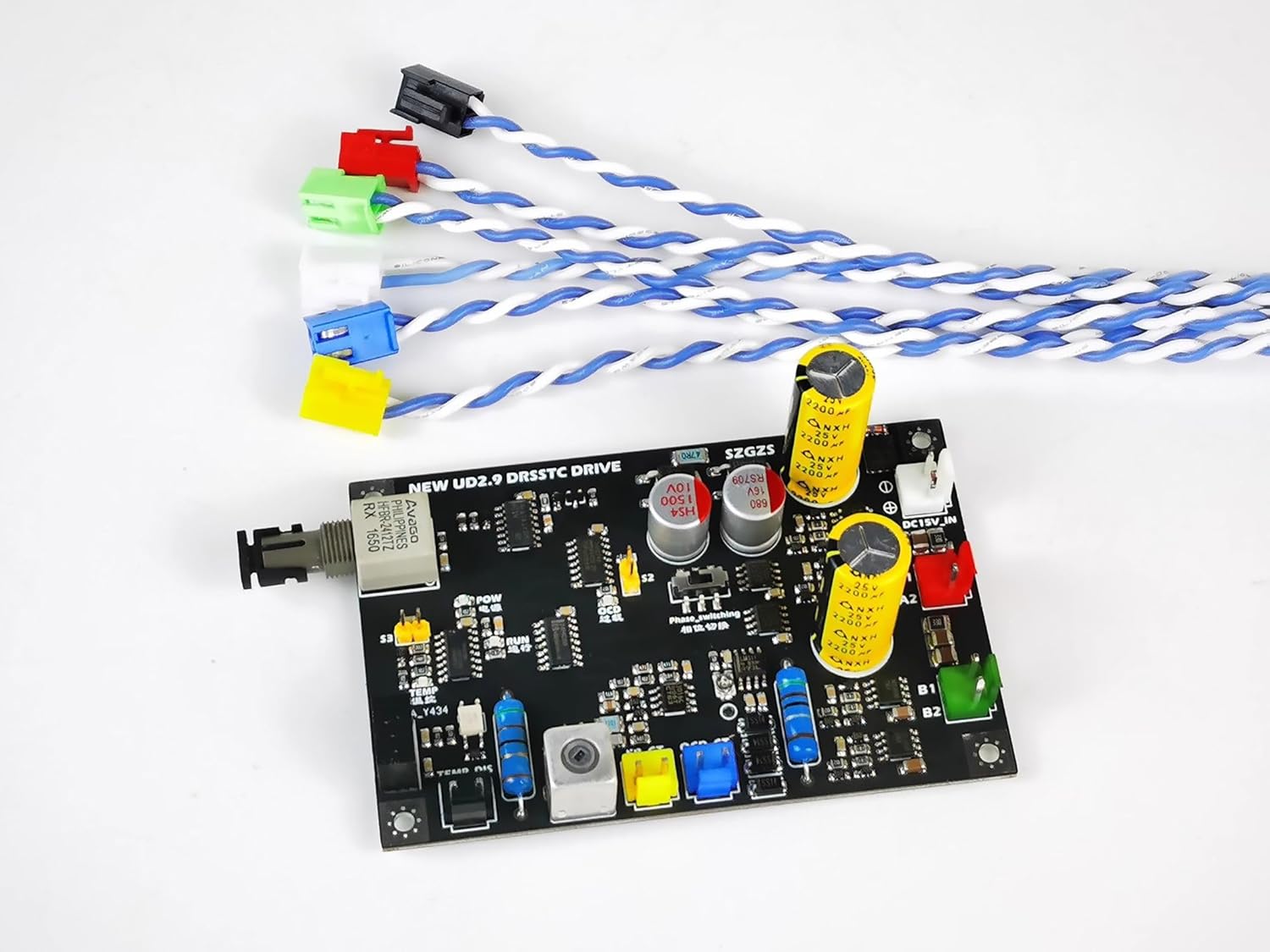

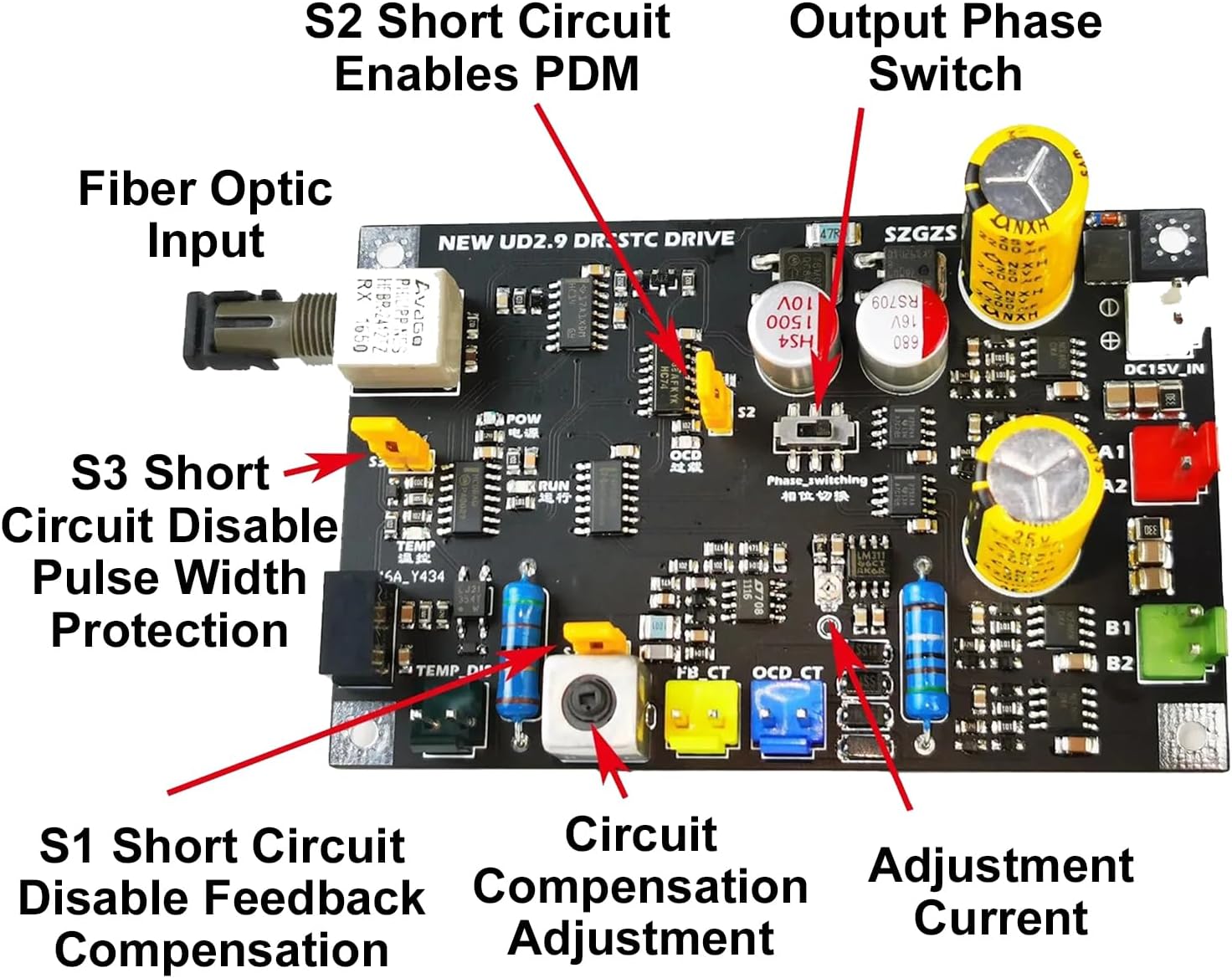

New UD2.9 DRSSTC Driver Board Interface Function: 1.The black interface temperature control fails, and the drive output stops after a short circuit. Connect the normally open temperature control switch to the full bridge for temperature detection. 2.The yellow interface is the current phase feedback input. The blue interface is the current value feedback input. 3.The red and green interfaces are two identical drive outputs, with A1 and B1 being in the same phase. 4.The white interface is for power input, connected to a 15V2A DC power supply.

• This product is a dual resonant Tesla coil driver board, with an overall size of 3.94 "x2.36" x1.57 "(length x width x height).
• The DRSSTC driver board is an innovation based on the basic solid-state Tesla coil. In the DRSSTC, the primary coil and series capacitor form an LC oscillating system that can resonate with the signal output from the driver board, generating an instantaneous high current that makes the arc produced by the coil even more spectacular.
• The dual resonant Tesla coil drive board adopts DC power supply and is equipped with reverse polarity protection function, which can effectively protect the safety of equipment and batteries. At the same time, this driver board can also be used for full bridge circuit over temperature protection control. ‌
• PDM and OCD dual mode, pulse width protection, phase compensation.
• The drive board adopts a dual group totem output design, with each group using independent power supply, enhancing the driving capability and suitable for electronic Tesla coils of different scales.
